Three Roller Cone Plate Rolling Machine

Three Roller Cone Plate Rolling Machine

Description

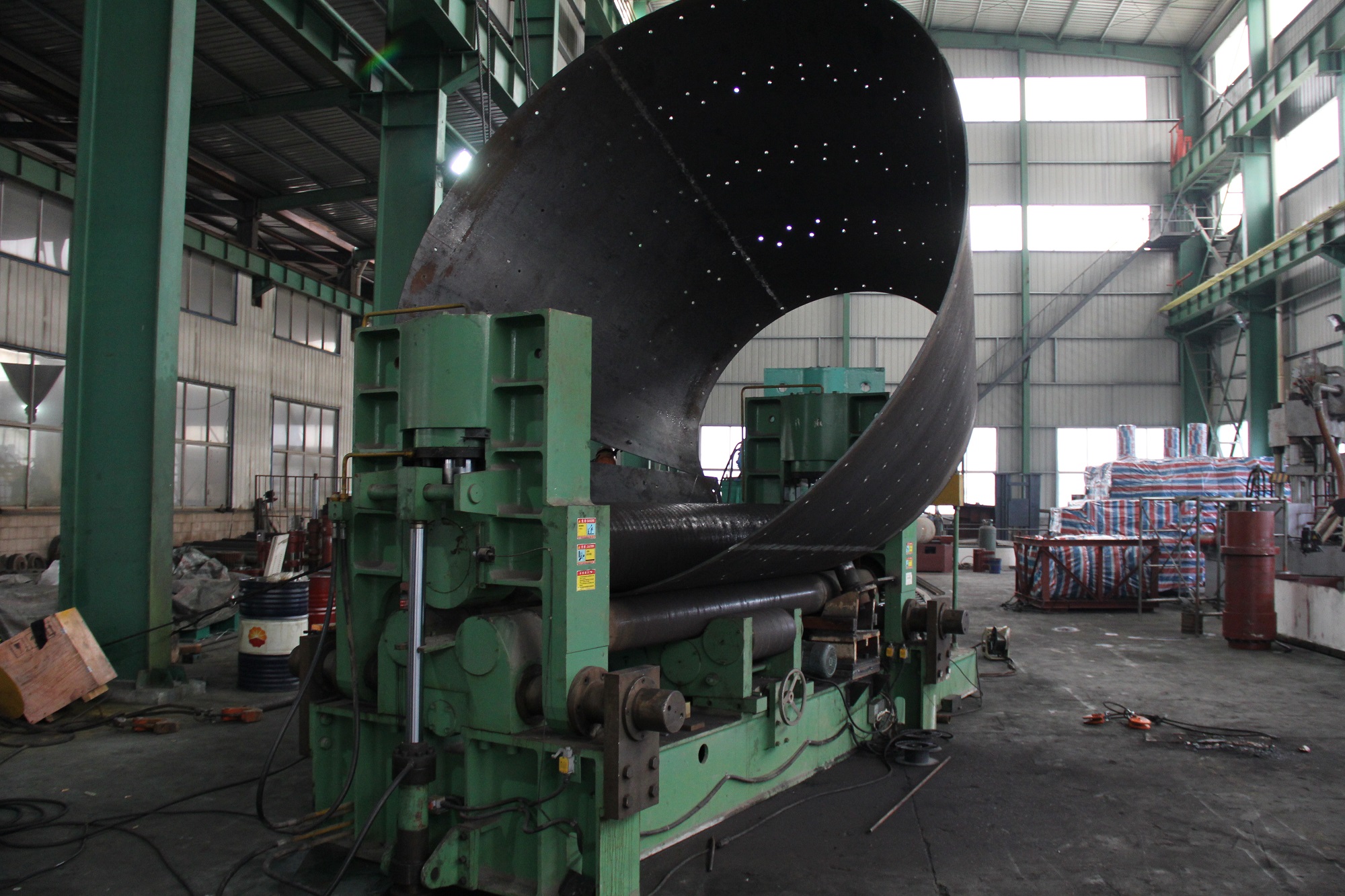

Three roller cone plate rolling machine can bend metal sheets with high productivity and good precision. This 3 roller cone bending machine is able to make complex shapes into corresponding dies by repetitious bending work. HB Machinery is a professional manufacturer and supplier of cone rolling machines in China. In addition to this plate rolling machine, we also provide rolling machine, leveling machine, shearing machine, press brake, profile bending machine, etc. Our 3 roller cone bending machines are well received by customers all over the world.

Features


Technical Parameters of Three Roller Cone Plate Rolling Machine

Model Pressure on the Upper Roll Roll Capacity Diameter of Upper Roll Diameter of Lower Roll Central
Distance
Main Motor  (kw) Roll Cone Angle
End
(mm)
Central(mm)
W11S-10×1500 37 8 10 205 135 180 4 ≤30°
W11S-12×2000 65 10 12 250 145 200 5.5 ≤30°
W11S-16×2500 100 12 16 300 165 270 11 ≤30°
W11S-20×3000 160 16 20 375 200 330 18.5 ≤30°
W11S-25×2500 190 20 25 380 220 360 18.5 ≤30°
W11S-30×2500 230 25 30 410 235 380 22 ≤30°
W11S-35×3000 320 30 35 500 260 420 37 ≤30°
W11S-40×3500 430 35 40 550 275 460 45 ≤30°
W11S-45×2500 430 40 45 520 275 460 45 ≤30°
W11S-50×3500 540 45 50 630 340 610 55 ≤30°
W11S-55×3000 610 45 55 620 360 650 55 ≤30°
W11S-60×4000 760 50 60 780 380 700 75 ≤30°
W11S-65×3000 760 55 65 700 380 700 75 ≤30°
W11S-70×4000 1000 65 70 820 440 820 75 ≤30°
W11S-75×3500 1000 65 75 780 440 820 75 ≤30°
W11S-80×3000 1000 70 80 770 440 820 75 ≤30°
W11S-90×4000 1350 80 90 910 480 920 90 ≤30°
W11S-100×3000 1250 85 100 820 480 920 90 ≤30°
W11S-110×3500 1400 95 110 940 520 1000 110 ≤30°
W11S-120×3000 1600 100 120 900 520 1000 110 ≤30°
W11S-140×3000 2200 120 140 960 620 1200 75×2 ≤30°

Main Standard Parts

Title Positioning
Axletree ZWZ
Main Electrical Components Schneider
Hydraulic
System
Pump HCHC
Valve Yuken
Digital
Display
System
Touch Screen DELTA
PLC DELTA
Transducer OMRON

After-Sale Service

Related Products
  • Four Roller Cone Plate Rolling Machine
    HB four roller cone rolling machine is developed by introducing foreign product technology and combining domestic product features. It is specially used for rolling cones. Featuring high efficiency, low energy consumption and easy operation, this cone bending machine's performance is superior to other rolling machines in China...
