Hydraulic Guillotine Shearing Machine

Hydraulic Guillotine Shearing Machine

Description
Hydraulic guillotine shearing machinery adopts framework structure for all-steel welding. With high precision and good rigidity, it adopts hydraulic preload. The hydraulic system uses two-way cartridge integrated valve. The hydraulic guillotine type plate shearer can be equipped with stroke digital display, optoelectronic protective device and mobile workbench to facilitate mold replacement. HB hydraulic guillotine shearing machinery possesses double acting functions of upper slide block and lower hydraulic cushion. Working pressure can be adjusted in a specialized range according to the processing requirement. Adopting button centralized control, this hydraulic guillotine type plate shearer is easy to operate. We can provide automatic, manual or semi-automatic operation mode.

Specifications of Hydraulic Guillotine Shearing Machinery

Technical Parameters of Hydraulic Guillotine Shearing Machinery

Model Shearing Thickness Shearing Width Number of Strokes Stroke of Rear Stopper Shearing Angle Bench
Height		 Motor
Power
mm mm time/min mm ° mm kw
Q11Y 6×2500 6 2500 16~35 20~600 30′-1°30′ 800 7.5
Q11Y 6×3200 6 3200 14~35 20~600 30′-1°30′ 800 7.5
Q11Y 6×4000 6 4000 10~30 20~600 30′-1°30′ 800 7.5
Q11Y 6×5000 6 5000 10~30 20~800 30′-1°30′ 900 11
Q11Y 6×6000 6 6000 8~5 20~800 30′-1°30′ 1000 11
Q11Y 8×2500 8 2500 14~30 20~600 30′-2° 800 11
Q11Y 8×3200 8 3200 12~30 20~600 30′-2° 850 11
Q11Y 8×4000 8 4000 10~25 20~600 30′-2° 900 11
Q11Y 8×5000 8 5000 10~25 20~800 30′-2° 1000 15
Q11Y 8×6000 8 6000 8~20 20~800 30′-2° 1050 15
Q11Y 12×2500 12 2500 12~25 20~800 30′-2° 840 15
Q11Y 12×3200 12 3200 12~25 20~800 30′-2° 900 15
Q11Y 12×4000 12 4000 8~20 20~800 30′-2° 940 15
Q11Y 12×5000 12 5000 8~20 20~1000 30′-2° 1000 22

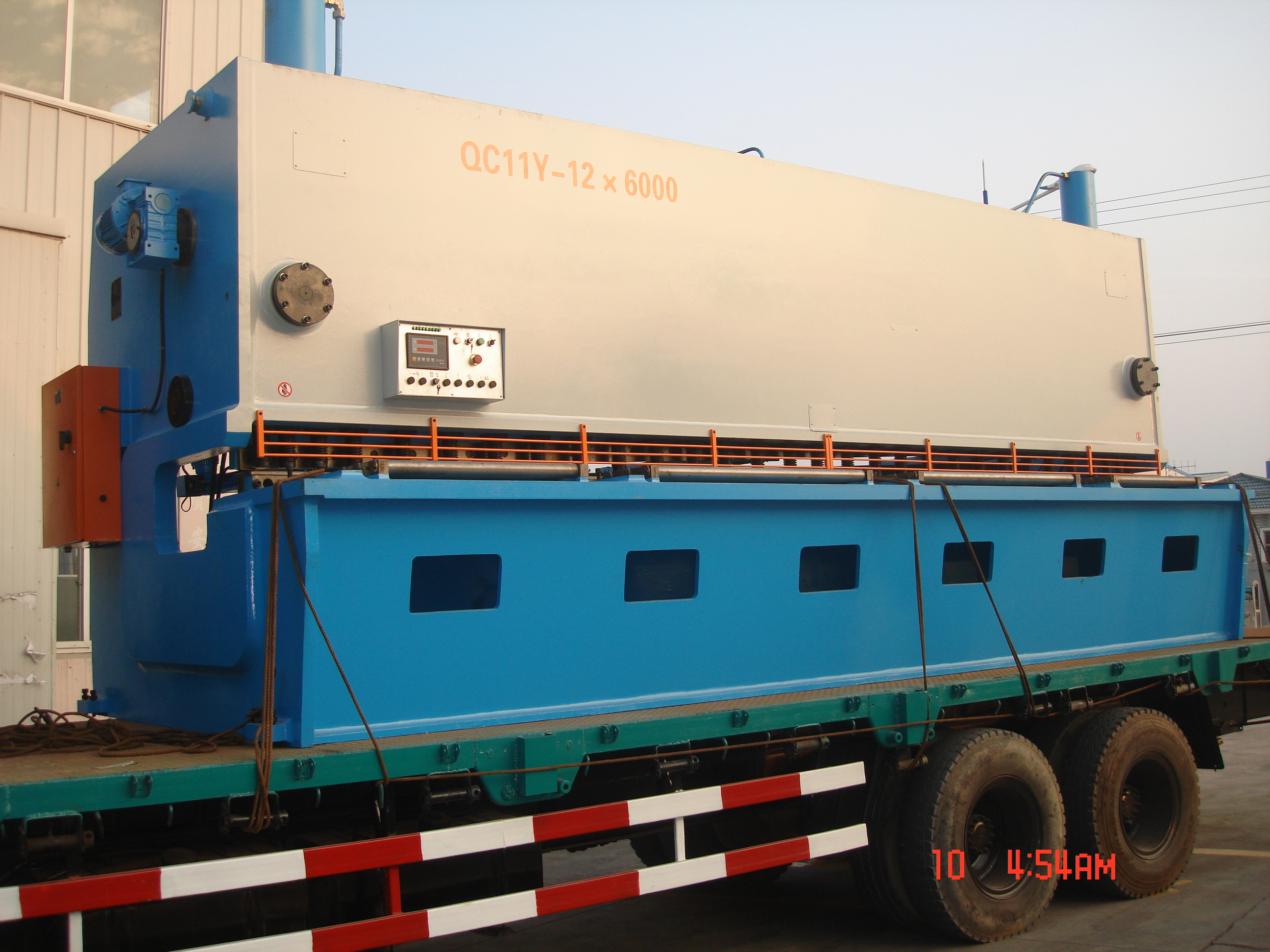

Q11Y 12×6000 12 6000 6~20 20~1000 30′-2° 1060 30
Q11Y 16×2500 16 2500 12~20 20~800 30′-1°30′ 840 22
Q11Y 16×3200 16 3200 12~20 20~800 30′-1°30′ 900 22
Q11Y 16×4000 16 4000 8~15 20~800 30′-1°30′ 940 22
Q11Y 16×5000 16 5000 8~15 20~1000 30′-1°30′ 1000 30
Q11Y 16×6000 16 6000 6~15 20~1000 30′-1°30′ 1100 37
Q11Y 20×2500 20 2500 10~20 20~800 30′-3° 900 30
Q11Y 20×3200 20 3200 10~20 20~800 30′-3° 950 30
Q11Y 20×4000 20 4000 8~15 20~800 30′-3° 1100 30
Q11Y 20×5000 20 5000 8~15 20~1000 30′-3° 1100 37
Q11Y 20×6000 20 6000 6~15 20~1000 30′-3° 1200 37
Q11Y 25×2500 25 2500 8~15 20~800 30′-1°30′ 900 37
Q11Y 25×3200 25 3200 8~15 20~800 30′-1°30′ 950 37
Q11Y 25×4000 25 4000 6~12 20~1000 30′-1°30′ 1100 37
Q11Y 32×2500 32 2500 6~12 20~1000 30′-4° 1000 55
Q11Y 32×3200 32 3200 8~12 20~1000 30′-4° 1100 55
Q11Y 40×2500 40 2500 4~10 20~1000 30′-4° 1200 55
Q11Y 40×3200 40 3200 4~10 20~1000 30′-4° 1200 55
CNC System for Hydraulic Guillotine Shearing Machinery
E10S E21s E210S DAC-310 DAC-350 DAC-360

Features:
According to its features, E10S hydraulic guillotine type plate shearer is equipped with photoelectric encoder to display the position of back gauge. It can also set the shearing amount. Special single direction position indicating function and screw pitch deviation compensation table can ensure that the display position and the actual position are the same. It is also installed with time relay, soft limit and power memory, bringing great convenience for our customers. This CNC system owns highly cost-effective advantage.

Main Function:
1. This system possesses 2 rows, 6×7 segment and LED display.
2. The unit of back gauge position is 0.1mm or 0.01 mm.
3. It owns screw pitch deviation compensation table.
4. Shearing count is available for this CNC system.
5. It has built-in time relay.
6. Inch or metric is optional.
7. Scale factor is free to set.




This product absorbs advantages of similar products both at home and abroad, combines domestic cutting equipment application requirements and develops bending device control system. It adopts unique drive control technology which ensures work accuracy and reduces the cost of control shearing machine. This creates conditions for the popularization of shearing machine control.

Features:
1. This system can do positioning control for back gauge of shearing machine.
2. It owns unidirectional and bidirectional positioning function that can effectively eliminate screw gap.
3. This system has material escape function which can block the interference between feeding device and workpiece, reduce wear and improve positioning accuracy.
4. It possesses automatic or manual search function of reference point.
5. This system has de-energized position memory function. It can protect parameters, locations and programs.
6. It owns fast position teaching function.
7. The multi-step programming function can realize multi-step automatic running, complete the one-time processing of multi-step parts and improve production efficiency.
8. Metric or imperial is optional to meet different users’ needs.


E210S is the latest functional shearing machine control system developed by ESTUN company. It includes all functions of E200-S CNC system. The system is equipped with servo motor, servo drive, ball screw, linear guide and imported electric appliances.

Main Function:
1. This system adopts 5.6-inch, 640×480 color display screen with high-grade delicate show.
2. It possesses advanced algorithms angle programming functions which helps it program quickly and conveniently.
3. The built-in PLC logic brings greater flexibility and stability.
4. It owns the upper and lower mould library.
5. This E210S CNC system can store 100 programs, each of which has 25 steps (E200-S has 40 programs).

DAC-310 special CNC system for shearing machine adopts the latest electronic technology. Featuring compact structure and complete function, it can provide a set of general solutions for the back gauge and blade gap of shearing machine, and the shearing process control. There are mainly three back gauge axis control modes including servo motor control, double speed AC motor control and VVVF control.

Function:
1. This system possesses high-resolution LCD display with 275 × 48 pixels.
2. It features back gauge control, incision gap control and shear stroke control.
3. There is synchronized display of back gauge actual position and programmed value.
4. It owns shearing count function and panel mounting.
5. Max program step is up to 100.
6. Servo control / VVVF control / double speed AC motor control are available.

This CNC system is a dedicated control system used for CNC hydraulic shearing machine.

Function:
1. This system is suitable for automatic control for full-featured front feeding or back gauge control.
2. It adopts high-definition LCD display and menu-driven programming.
3. This CNC system can automatically calculate and control the shearing angle, blade gap and the shearing process.
4. It adopts the absolute position and relative position programming modes.
5. The system can automatically search for reference point and also can set the position of power memory.
6. There are several custom auxiliary signal outputs.
7. The unique hand wheel can facilitate adjustment of the machine.　　
8. It adopts modular structure, flexible definition or expansion X1-X2 synchronized feeding control and transmission Z axis control.
9. This CNC system has self-diagnostic program.
10. There are one-way positioning and bi-directional positioning available for customers.
11. It owns RS232 serial interface.
12. This system can set counting mode (count the increased and reduced).


DAC-360 system provides a complete solution for shearing machine control, such as back gauge control, shearing angle control, shearing process control and shearing pressure control. In addition to the back gauge, DAC-360 system can automatically calculate the shearing angle and blade gap according to material properties and sheet thickness. In accordance with the sheet width, this system can automatically calculate the shearing process to maximize saving shearing time. This CNC system can realize control of the back gauge by servo, double speed motor or one-way direction output modes. Besides, according to the application, customers can also select single bilateral positioning of axis deviation correction table. The system can realize the full control of the clamping pressure and shearing pressure. The high brightness LCD display and concise programming interface provide operators with good human-computer interaction dialogue.

Function:
1. This system possesses 4.7 LCD display.
2. DAC-360 CNC system owns automatic control of back gauge, blade gap, shearing process and shearing angle.
3. It has the function of automatic count of shearing pressure.
4. There are 100 programs that each program has 25 steps.
5. I/O port flexible definition is available for this system.
